Surface mount multilayer ceramic capacitor with 1uF capacitance and 100V DC rated voltage. Features X7S dielectric with a tolerance of 10% and a wide operating temperature range from -55°C to 125°C. The component is housed in an 0805 (2012 metric) case code, measuring 2mm in length, 1.25mm in width, and 1.25mm in height. This RoHS compliant component is supplied on tape and reel.
Package0805
Voltage100V
Capacitance1uF
Voltage Rating100V
Quick Jump:
Technical Specifications
TDK C2012X7S2A105K125AB technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7S |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C2012X7S2A105K125AB Datasheet
Download the complete datasheet for TDK C2012X7S2A105K125AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

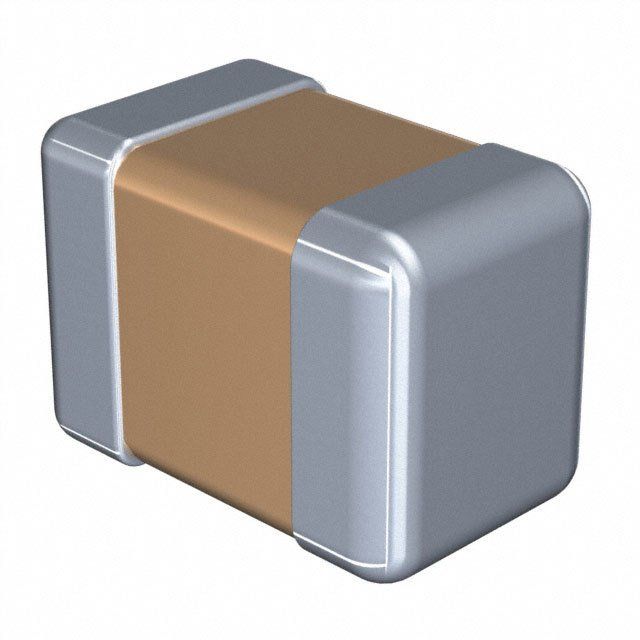

Product Images
