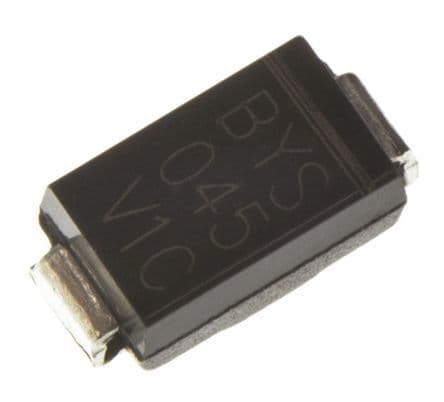

The BYS10-45-E3/TR3 is a surface mount general purpose rectifier diode with a maximum operating temperature of 150°C and a maximum repetitive reverse voltage of 45V. It has a maximum forward surge current of 40A and a maximum reverse current of 500uA. The diode is packaged in a DO-214AC package and is lead free. It is RoHS compliant and available in quantities of 7500 per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BYS10-45-E3/TR3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 1.5A |
| Package/Case | DO-214AC |
| Contact Plating | Tin, Matte |
| Forward Current | 1.5A |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Max Reverse Current | 500uA |
| Max Reverse Voltage (DC) | 45V |
| Mount | Surface Mount |
| Package Quantity | 7500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 40A |
| RoHS Compliant | Yes |
| Width | 2.9mm |
| RoHS | Compliant |
