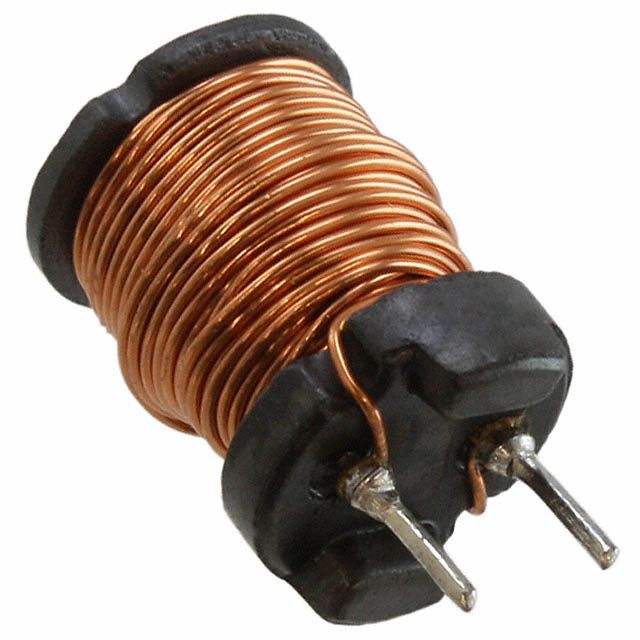

Through-hole fixed inductor featuring a ferrite core and unshielded wirewound construction. Offers 470µH inductance with a 10% tolerance, rated for 1.15A DC current and 1.15A RMS current. DC resistance is 520mΩ, with a maximum operating temperature of 125°C. Dimensions include a 10.5mm diameter and 14.5mm length, with a 5mm lead pitch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 7447480471 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Core Material | Ferrite |
| DC Resistance (DCR) | 520mR |
| Diameter | 10.5mm |
| Inductance | 470uH |
| Inductance Tolerance | 10% |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 14.5mm |
| Max DC Current | 1.15A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 1.15A |
| RoHS Compliant | Yes |
| Saturation Current | 1.15A |
| Self Resonant Frequency | 1.8MHz |
| Series | WE-TI |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 10% |
| RoHS | Compliant |
