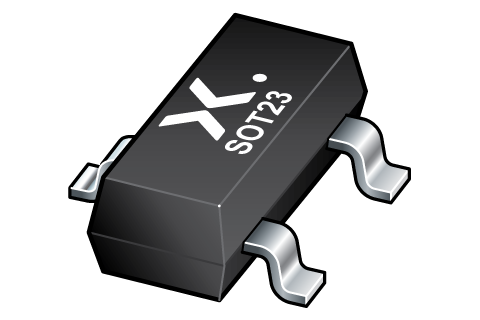

Schottky barrier diode provides low forward voltage and low capacitance for high-speed switching, line termination, voltage clamping, and reverse-polarity protection. The device uses a planar Schottky structure with an integrated guard ring for stress protection. It is housed in a SOT23 surface-mount plastic package with TO-236AB package equivalence. Electrical ratings include 30 V maximum reverse voltage, 200 mA maximum forward current, and 10 pF maximum diode capacitance at 1 V reverse bias.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nexperia BAT54C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Device type | Schottky barrier diode |
| Diode configuration | Common cathode |
| Package version | SOT23 |
| Package name | SOT23 |
| Package dimensions | 2.9 x 1.3 x 1mm |
| Reverse voltage maximum | 30.0V |
| Forward current maximum | 200.0mA |
| Diode capacitance maximum | 10.0pF |
| Capacitance test reverse voltage | 1.0V |
| Reverse current maximum | 2.0uA |
| Reverse current test voltage | 25.0V |
| Automotive qualified | No |
| Mounting type | Surface-mount device |
| Guard ring | Integrated guard ring for stress protection |
| RoHS | Compliant |
| Lead Free | Yes |
| Rhf Indicator | Yes |
| Chemical Content | https://www.nexperia.com/chemical-content/BAT54C.html |
