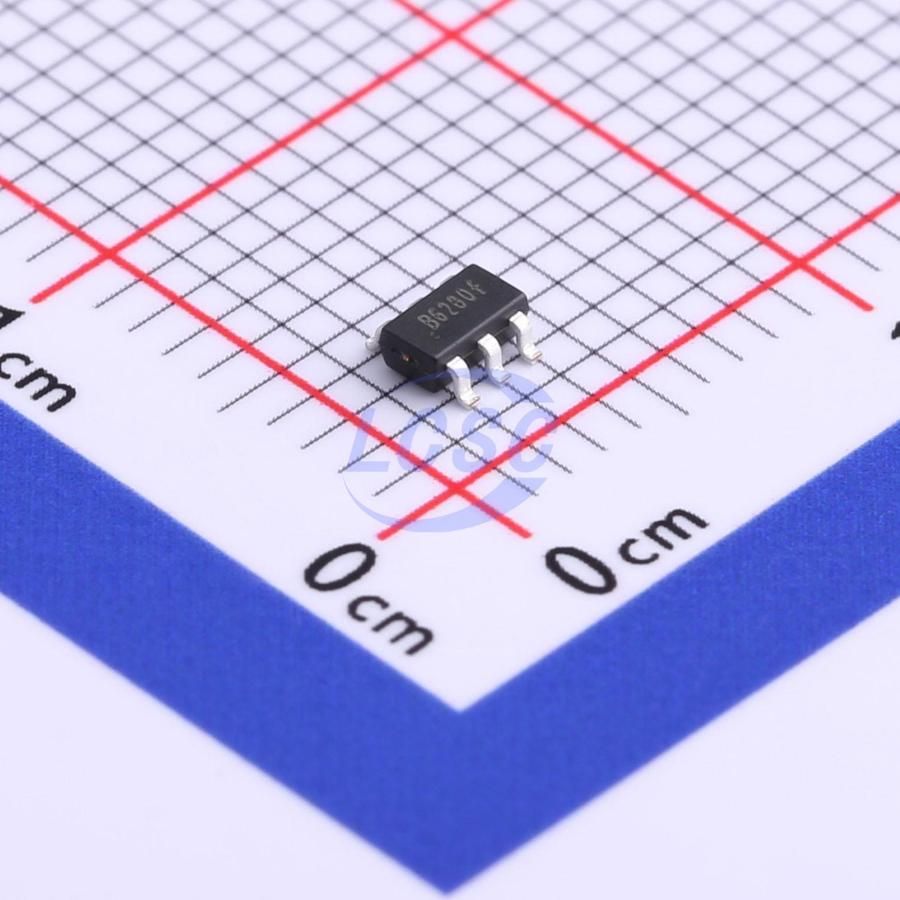

Step-up converter regulates an adjustable output up to 28 V from a 2 V to 24 V input supply. The device uses fixed-frequency peak-current-mode control at 1.2 MHz and integrates an 80 mΩ power MOSFET with a 4 A switch current limit. Internal soft-start, undervoltage lockout, current limiting, and thermal shutdown protection are included. The converter operates from -40 °C to 85 °C and is supplied in a 6-pin SOT-23 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aerosemi MT3608 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Converter Type | Step-up boost regulator |
| Input Voltage Min | 2V |
| Input Voltage Max | 24V |
| Output Voltage Max | 28V |
| Switching Frequency | 1.2MHz |
| Switch Current Limit | 4A |
| SW On Resistance | 80 typ, 150 maxmΩ |
| Feedback Voltage | 0.6 typV |
| Maximum Duty Cycle | 90% |
| Efficiency | Up to 97% |
| Shutdown Current | 0.1 typ, 1 maxµA |
| Quiescent Current PFM | 100 typ, 200 maxµA |
| Quiescent Current PWM | 1.6 typ, 2.2 maxmA |
| Operating Temperature | -40 to 85°C |
| Thermal Shutdown | 155°C |
| Recommended Inductance | 4.7 to 22µH |
| Package | SOT-23-6 |
| RoHS | Compliant |
| Cnhts | 8542399000 |
| Ushts | 8542390001 |
| Taric | 8542399000 |
Download the complete datasheet for Aerosemi MT3608 to view detailed technical specifications.
