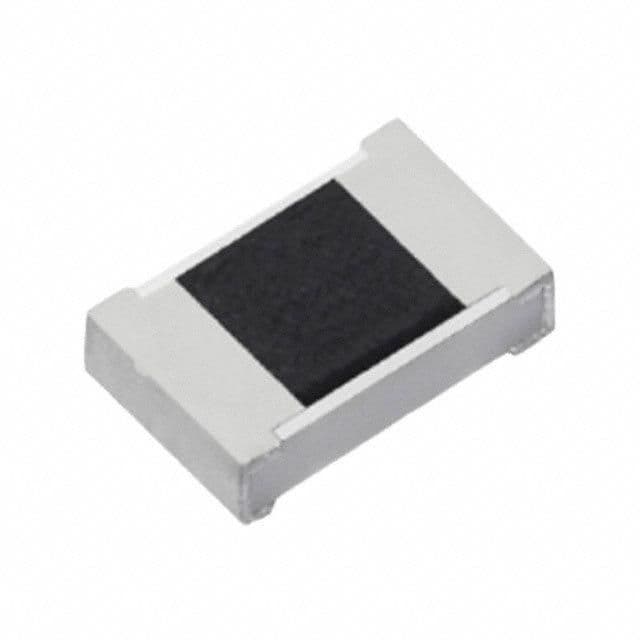

Automotive-grade thick film chip resistor, 10k Ohm resistance with 1% tolerance. Features a 0603 (1608 metric) SMD package, 100mW power dissipation, and a voltage rating of 75V. Operating temperature range from -55°C to 155°C, with a temperature coefficient of ±100ppm/°C. Surface mount design with tin contact plating, supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ERJ-3EKF1002V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.8mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 100mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Size Code | 0603 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Width | 0.8mm |
| RoHS | Yes |
| Aec-q200 | Yes |
| Reach Svhc | No SVHC |
| Halogen Free | Yes |
| Military Spec | False |
| ECCN | EAR99 |
Download the complete datasheet for Panasonic ERJ-3EKF1002V to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
